| Screwdriver Bit's Dual-Color Ring Coating Machine PIH-01 |
|
| High-Efficiency Pad Printing Machine for Screwdriver Bit Manufacturers. |
|
| PIH-01 – Faster, more stable, and labor-saving for your production line! |
|
|
|
| • |
Solve Manual Coating Challenges：Traditional manual coating is time-consuming and often inconsistent. PIH-01 ensures every screwdriver bit ring is full, uniform, and clearly visible. |
| • |
Boost Productivity & Efficiency：Dual-color coating completed in a single process. With over 95% uptime, one operator can manage 5–6 machines simultaneously. |
| • |
Reduce Costs：Quick ink color change and pad replacement (only 5–10 seconds) minimize downtime and cut labor costs. |
|
|
|
| • |
Tool Manufacturers：Large-scale production requiring consistent and reliable ring coating. |
| • |
Brand Owners：Enhance product recognition and professional appearance to stand out in the market. |
| • |
F.M (Flexible Manufacturing)：Flexible compatibility with 1-inch and 2-inch screwdriver bits, and various shapes including hexagonal, cylindrical, and conical surfaces. |
|
|
|
| • |
Dual-Color in One Step：Double efficiency, professional finish. |
| • |
Fully Automated Process：From blank orientation to coating, curing, counting, and boxing—no manual intervention needed. |
| • |
High-Capacity Feeding System：Stores up to 30,000 pcs for stable supply. |
| • |
Fast Maintenance：Pad replacement in just 5–10 seconds, keeping downtime to a minimum. |
|
|
|
| • |
Enhance Brand Image：Clear, vibrant color rings improve product recognition. |
| • |
Strengthen Competitive Edge：High efficiency and cost savings help you outperform competitors. |
| • |
Long-Term Reliability：Robust monitoring system and high uptime ensure stable, long-lasting operation. |
|
 |
 |
|
| • |
Multi-specification compatibility：A single production module can feed and coat blanks of different specifications within the same series. |
| • |
High-capacity feeding system：Stores up to 30,000 pcs of 1-inch material, enabling continuous production for up to 12 hours. The feeding hopper is ergonomically designed for convenient loading. |
| • |
Automatic pad cleaning：Ensures stable printing quality. |
| • |
High-efficiency dual-color coating：Completes dual-color coating and curing in one process, greatly improving productivity. |
| • |
Fully automated cycle：Coating, baking, material collection, and jig return are all automated. |
|
|
| • |
Safety certification：
Complies with EU CE standards and meets three major safety directives： |
| |
• (MP) Machinery Directive
• (LVC) Low Voltage Directive
• (EMC) Electromagnetic Compatibility Directive |
|
|
 |
 |
|
 |
| PIH-01 Screwdriver Bit's Dual-Color Ring Coating Machine |
 |
| Applicable range |
1-inch, 2-inch screwdriver bits (separate models)
|
| Capacity |
Max. 35 pcs/min (including curing process) |
| Ink type |
Single-component heat-curing pad printing ink |
| Curing method |
Oven curing (180°C / 30 min) |
 |
|
| Size (L*W*H) |
320 × 288 × 250 cm
(including feeding system and curing oven) |
|
|
| Weight |
Main unit 1150 kg + curing equipment 650 kg
= total 1800 kg |
|
|
| Power Supply |
3Ø, AC 230 V, 60 Hz
(customizable for other specifications) |
|
|
| Air Pressure |
4 ~ 6 kg / c㎡ |
|
 |
|
|
 |
|

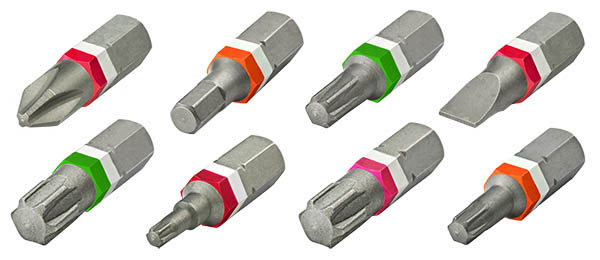

The PIH-01 is specifically designed for screwdriver bit products, capable of dual-color ring coating on hexagonal and curved surfaces. It ensures consistent product appearance and clear identification. |
|
|
|
|
 |
|
| We provide a complete consumable supply system, including : |
• Pad printing heads
• Pad printing steel plates
• Ink cup |
|
|
|
 |
|
 |
 |
|
