The following video is to introduce the Coating Machine Operation Record. |
|
|
 |
| Fuse's Color Code Coating Machine TIU-03 |
|
| High-Speed Four-Color Transfer — Precision, Automation, and Consistency. |
|
|
|
|
| • |
Automated Feeding : Equipped with a storage hopper and vibration plate, holding up to 5,000 pcs per cycle. Reduces breakage and contamination while saving labor costs. |
 |
|
| • |
Precision Coating : Achieves four-color ring coding in a single process. Stable, accurate, and ensures consistent quality. |
|
|
| • |
Strict Quality Control : High-resolution CCD vision system continuously monitors color, line width, and spacing for zero-defect assurance. |
|
|
| • |
Instant UV Curing : LED UV curing system solidifies coatings in real time, boosting production efficiency. |
|
 |
 |
|
|
|
| • |
Boost Automation : Reduce labor costs with streamlined processes. |
|
|
| • |
Ensure Consistency : Guarantee uniform quality across every product. |
|
|
| • |
Flexible Adaptability : Easily switch between specifications for diverse production needs. |
|
|
| • |
Four Key Elements for Production : Speed, precision, inspection, and curing — perfectly integrated. |
|
 |
 |
|
 |
| TIU-03 Fuse's Color Code Coating Machine |
 |
| Applicable range |
Diameter Ø4.4 – 5.9 mm, length 19 – 30.8 mm (customizable). |
| Capacity |
Up to 100 pcs/min (including curing process) |
| Ink type |
UV ink |
| Curing method |
UV curing |
| Size (L*W*H) |
194.5 × 108.5 × 230 cm
|
| Weight |
800 kg |
| Power Supply |
AC 220V, < 60A (customizable) |
| Air Pressure |
> 5 kg / c㎡ |
|
 |
|
|
 |
|

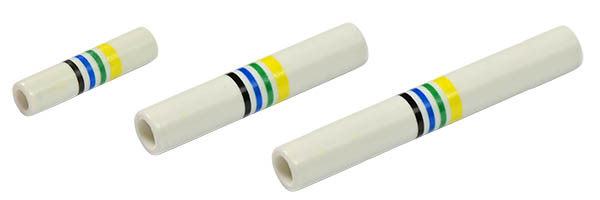

The TIU-03 is purpose-built for fuses, ceramic tubes, and other cylindrical components. It completes four-color coating in one step, delivering a high-efficiency, high-yield solution for modern production lines. |
|
|
|
|
 |
|
| We provide a complete consumable supply system, including : |
|
|
|
 |
|
 |
 |
|
